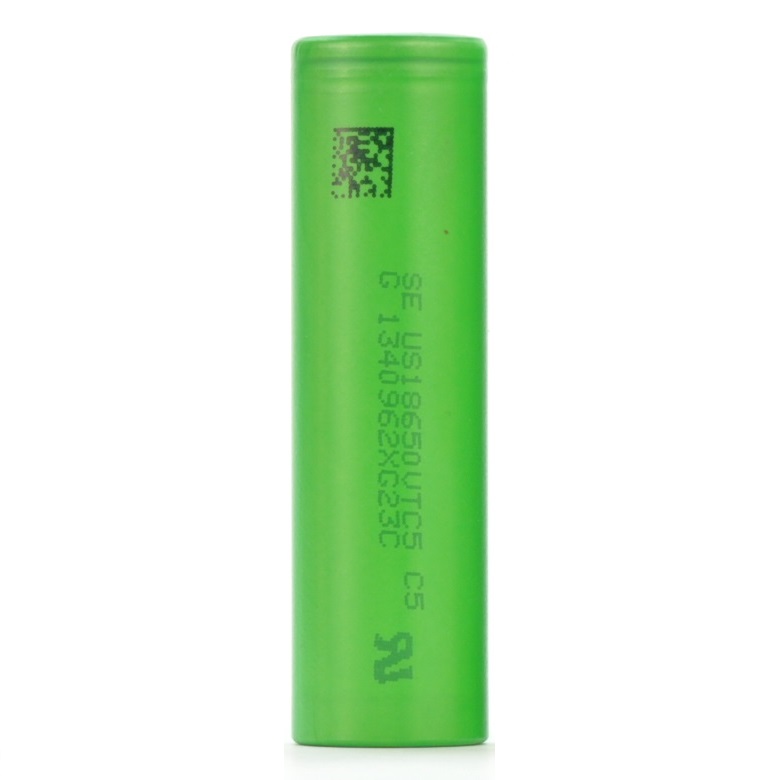

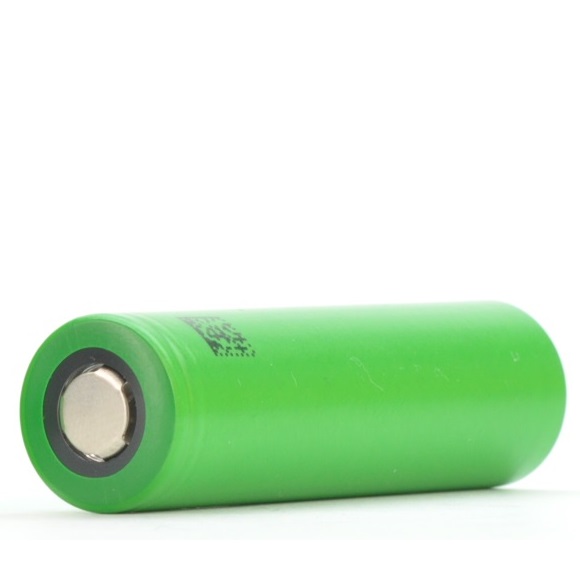

The Sony VTC5 18650 2600mAh 20A battery is a cylindrical 18650 cell with a flat top and 18mm x 65mm dimensions. The Sony VTC5 18650 2600mAh 20A battery holds a maximum capacity of 2600mAh. The Sony VTC5 18650 2600mAh 20A battery performs with a continuous discharge rate of 10 Ampere and has a maximum discharge rate of 20 Ampere. The Sony VTC5 battery suits vape mods with a max output power of 120W.
The authentic Sony VTC5 battery has a high capacity, 20A self-discharge rate, and long cycle life. Current solid charge and discharge capability reached IEC standard. However, The authentic Sony VTC5 battery is an unprotected type and must be used in protective devices. On the other hand, the authentic Sony VTC5 battery is produced with safer chemistry Li-Ion; it requires a protection circuit and has a low risk of venting with flame or explosion.

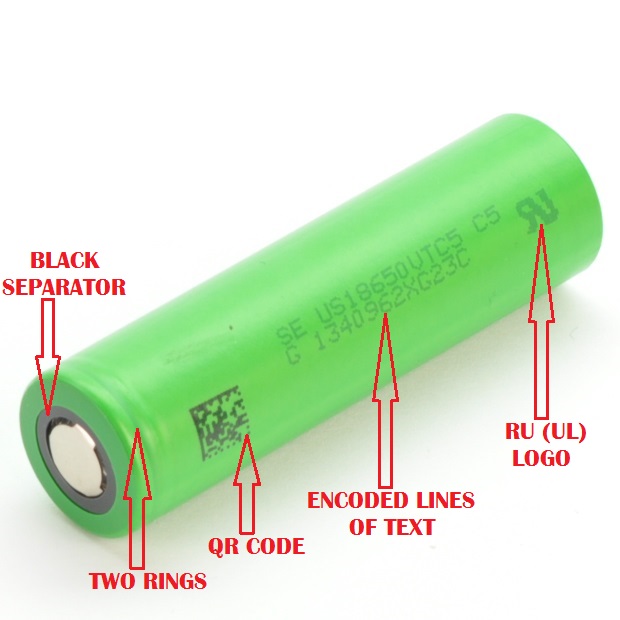

The Sony 18650 VTC5 battery, unlike the Sony VTC4 battery, matches the devices with a max power of 120W. Besides, the Sony 18650 VTC5 battery matches the twin “dimples” on top of the cell, just outside the top contact, that all 18650 Sony VTC cells had. Moreover, the Sony 18650 VTC5 battery is rated with the VTC5 at 20A with a minimum temperature rating of 30A if the cell does not get hotter than 80°C.
Model: Authentic VTC5 Sony 2600mAh 20A
Continuous Discharge: 10A
Max Discharge: 20A
Capacity: 2600mAh
Nominal Voltage: 3.6V
Charge Voltage: 4.2V
Self-Discharge: <2.0V
Positive Side: Flat Top
Chemistry: Li-Ion
Lifespan: 500+ Cycles
Protection: NOT PROTECTED*
Charging Time: 4.2V/3.0A - 2.5 Hours
Length: 65mm [+/- 0.2mm]
Diameter: 18mm [+1.5mm /- 0.2mm]
Weight: 44.5g [+/- 1.5g]
1x Authentic VTC5 Sony 18650 Battery
* The Sony 18650 Battery VTC5 is unprotected and intended for use in protected battery packs only and NOT individually or as a standalone product. To operate safely, the Sony 18650 Battery VTC5 must have extra protection with PCB [protection circuit board] or BMS [battery management system], which isn't included.
**Don't resell the Sony US18650VTC5 battery.
**Don't throw the battery into fire, nor heat the battery.
**Don't disassemble nor modify the battery.
**Don't leave the battery in a place of high temperature [60°C or more].
**Don't use the Sony US18650VTC5 battery at a high temperature [60°C or more].
**Don't expose the battery to water or moisture.
**Don't add strong shock, nor drop the battery.
**Don't solder leads directly to the battery body.
**Don't short (+) and (-) terminal of the battery with a kind of metal.
**Don't reverse charge the battery.
**Don't penetrate the battery with a nail, nor make a hole in the battery.
**Don't put the Sony US18650VTC5 battery into a microwave oven or high-pressure container.
The Sony 18650 battery VTC5 is crafted of lithium-ion. Misusing or mishandling lithium-ion batteries can pose a SERIOUS RISK of personal injury or property damage. The Sony 18650 battery VTC5 is not meant to be used outside of a protected battery pack. Never exceed the battery’s continuous current rating and keep the plastic wrap and top insulating ring in perfect condition.
